Go back to "Molded-in Locking Inserts" page arrowMolded-in Locking Inserts

Thread 1/4-28

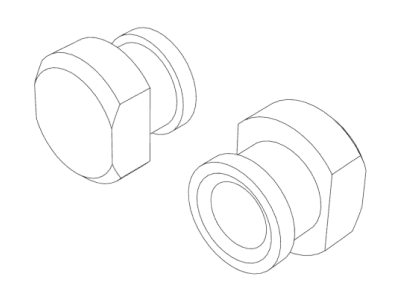

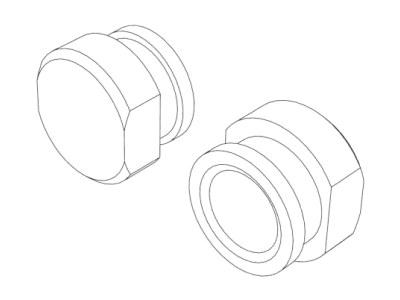

Drawing of H3-IBLS-0428-7 by Harper Engineering Co.

H3-IBLS-0428-7

Length: 0.219 in

Diameter: 0.344 in

Depth: 0.143 in

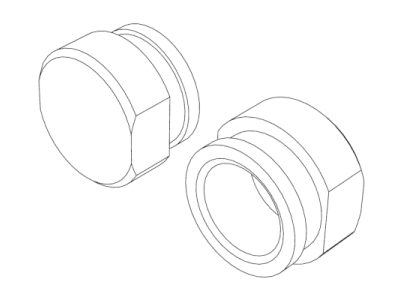

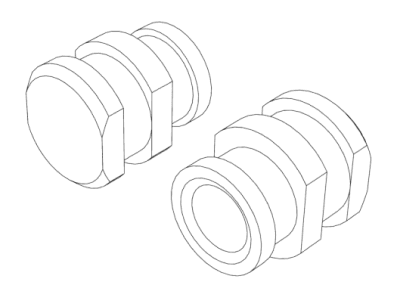

Drawing of H3-IBLS-0428-20 by Harper Engineering Co.

H3-IBLS-0428-20

Length: 0.625 in

Diameter: 0.244 in

Depth: 0.536 in

Thread #4-40

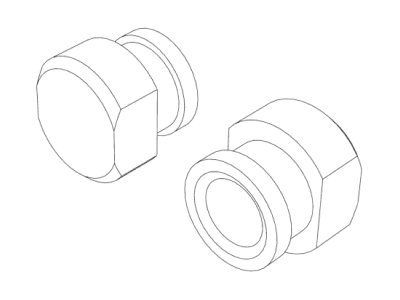

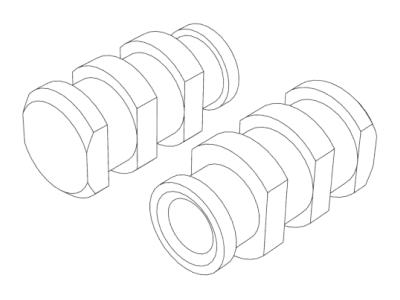

Drawing of H3-IBLS-440-5 by Harper Engineering Co.

H3-IBLS-440-5

Length: 0.156 in

Diameter: 0.188 in

Depth: 0.106 in

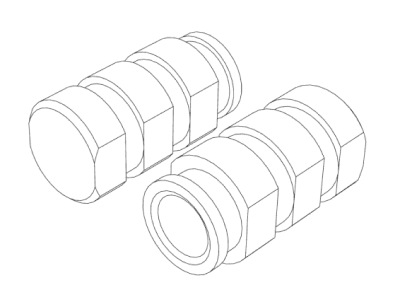

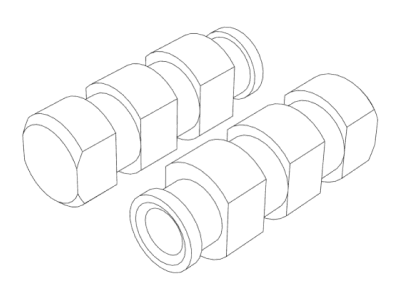

Drawing of H3-IBLS-440-11 by Harper Engineering Co.

H3-IBLS-440-11

Length: 0.344 in

Diameter: 0.188 in

Depth: 0.288 in

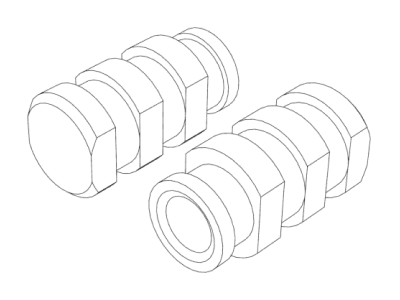

Drawing of H3-IBLS-440-16 by Harper Engineering Co.

H3-IBLS-440-16

Length: 0.500 in

Diameter: 0.188 in

Depth: 0.430 in

Thread #6-32

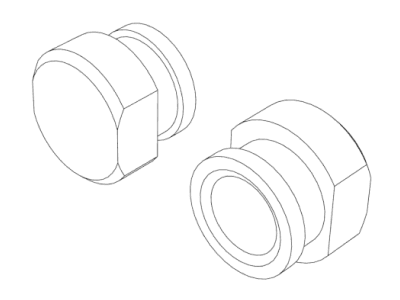

Drawing of H3-IBLS-632-6 by Harper Engineering Co.

H3-IBLS-632-6

Length: 0.188 in

Diameter: 0.219 in

Depth: 0.133 in

Drawing of H3-IBLS-632-8 by Harper Engineering Co.

H3-IBLS-632-8

Length: 0.250 in

Diameter: 0.219 in

Depth: 0.190 in

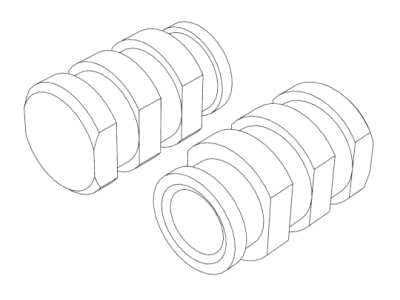

Drawing of H3-IBLS-632-13 by Harper Engineering Co.

H3-IBLS-632-13

Length: 0.406 in

Diameter: 0.219 in

Depth: 0.328 in

Thread #8-32

Drawing of H3-IBLS-832-6 by Harper Engineering Co.

H3-IBLS-832-6

Length: 0.188 in

Diameter: 0.250 in

Depth: 0.125 in

Drawing of H3-IBLS-832-13 by Harper Engineering Co.

H3-IBLS-832-13

Length: 0.406 in

Diameter: 0.250 in

Depth: 0.328 in

Thread #10-32

Drawing of H3-IBLS-032-6 by Harper Engineering Co.

H3-IBLS-032-6

Length: 0.188 in

Diameter: 0.281 in

Depth: 0.125 in

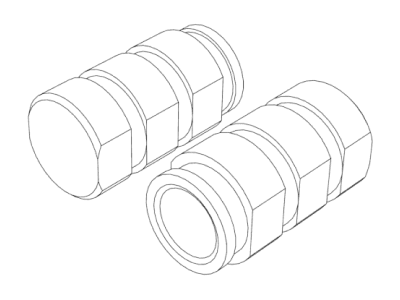

Drawing of H3-IBLS-032-17 by Harper Engineering Co.

H3-IBLS-032-17

Length: 0.531 in

Diameter: 0.281 in

Depth: 0.453 in
