Decorative Washer Types

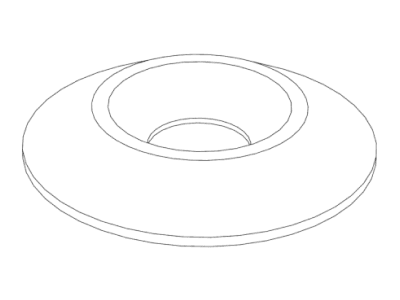

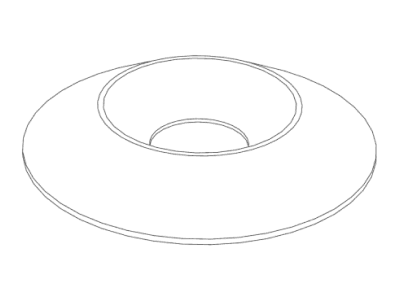

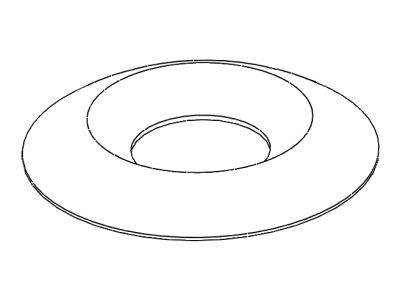

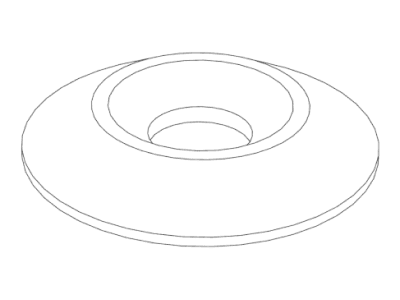

Drawing of H3-1233(X)4 by Harper Engineering Co.

H3-1233(X)4

Size: 1/4x100°

Outer Diameter: 0.790 in

Thickness: 0.090 in

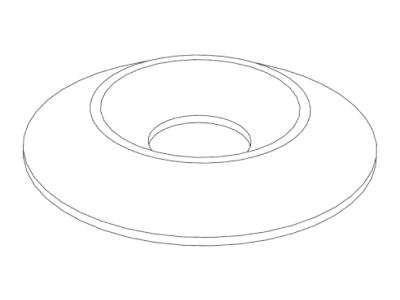

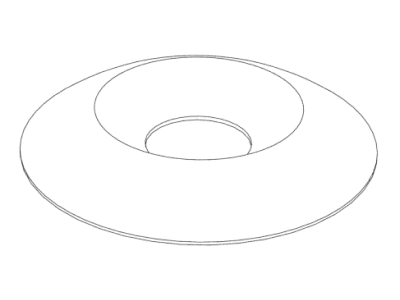

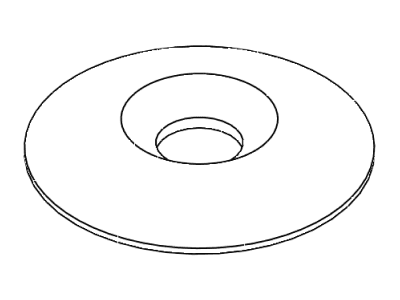

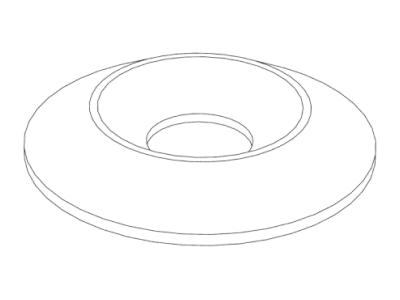

Drawing of H3-1233(X)4B by Harper Engineering Co.

H3-1233(X)4B

Size: 1/4x100°

Outer Diameter: 0.863 in

Thickness: 0.115 in

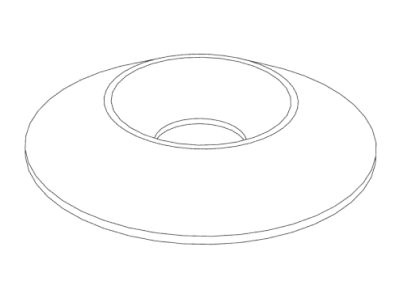

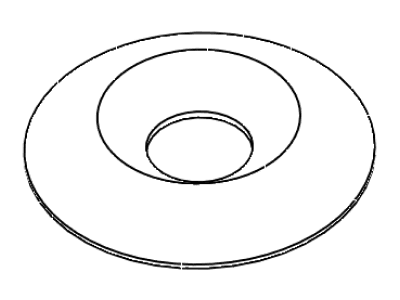

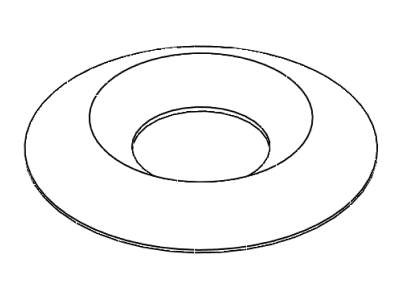

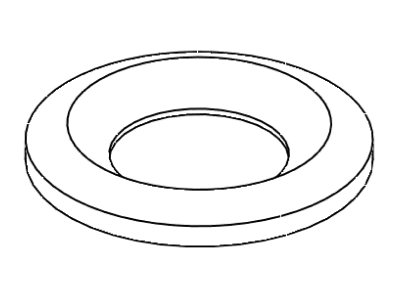

Drawing of H3-1233(X)5B by Harper Engineering Co.

H3-1233(X)5B

Size: 5/16x100°

Outer Diameter: 1.077 in

Thickness: 0.140 in

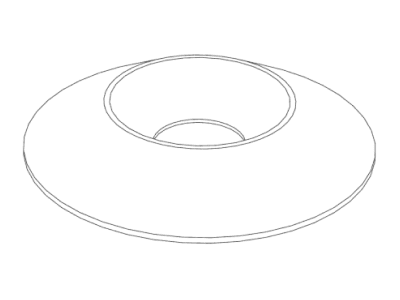

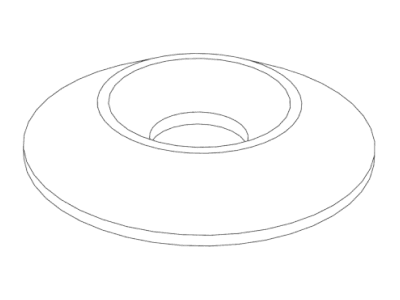

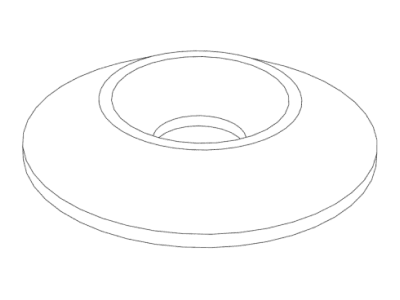

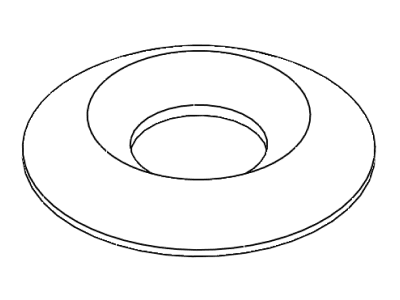

Drawing of H3-1233(X)5R by Harper Engineering Co.

H3-1233(X)5R

Size: 5/16x100°

Outer Diameter: 0.500 in

Thickness: 0.060 in

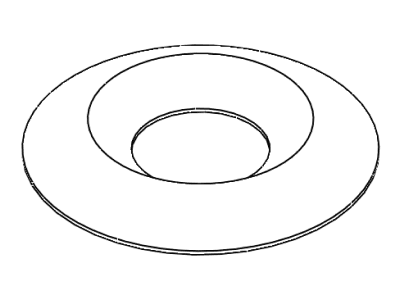

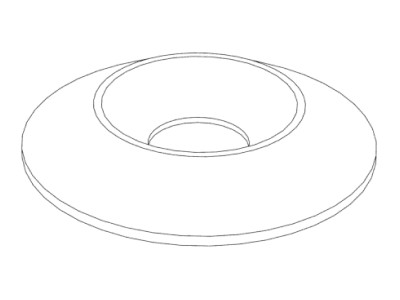

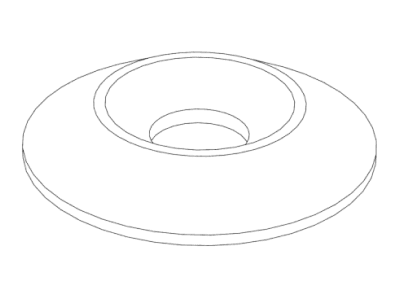

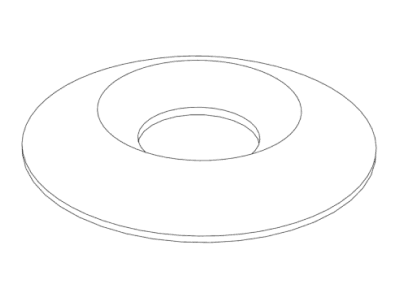

Drawing of H3-1233(X)6R by Harper Engineering Co.

H3-1233(X)6R

Size: 3/8x100°

Outer Diameter: 0.600 in

Thickness: 0.060 in

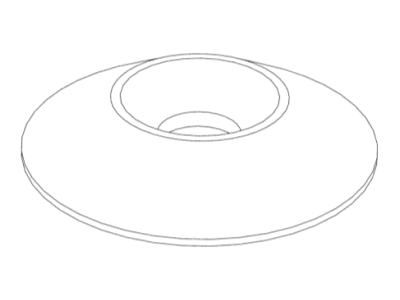

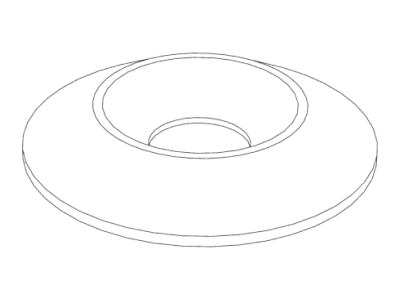

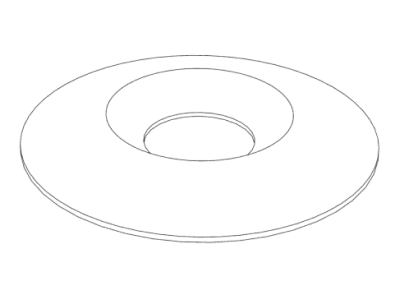

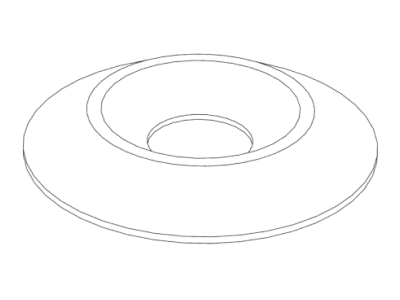

Drawing of H3-1233(X)04 by Harper Engineering Co.

H3-1233(X)04

Size: #4x100°

Outer Diameter: 0.354 in

Thickness: 0.060 in

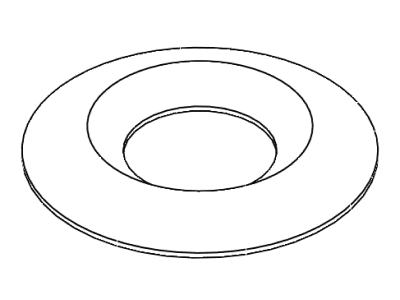

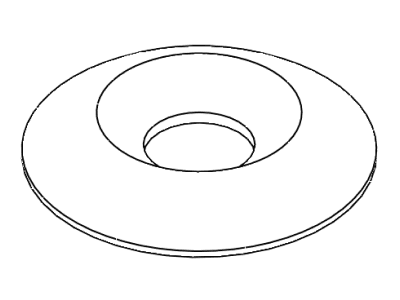

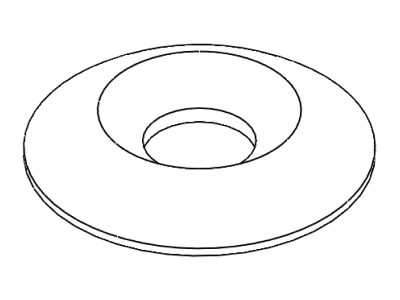

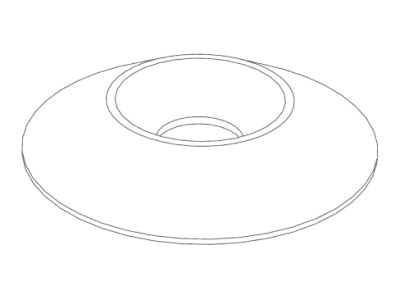

Drawing of H3-1233(X)04B by Harper Engineering Co.

H3-1233(X)04B

Size: #4x100°

Outer Diameter: 0.387 in

Thickness: 0.060 in

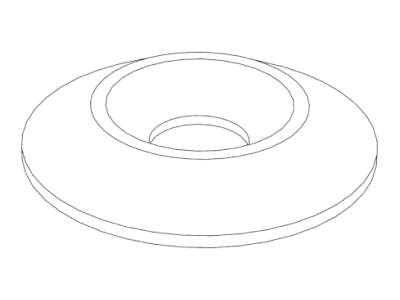

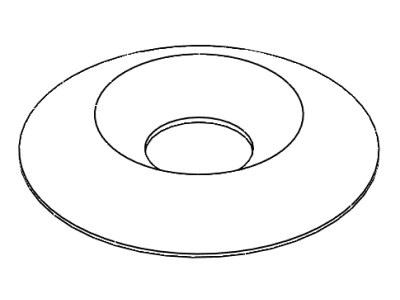

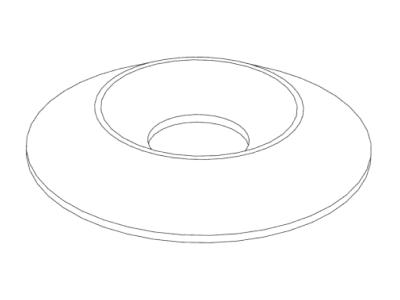

Drawing of H3-1233(X)06 by Harper Engineering Co.

H3-1233(X)06

Size: #6x100°

Outer Diameter: 0.436 in

Thickness: 0.060 in

Drawing of H3-1233(X)06B by Harper Engineering Co.

H3-1233(X)06B

Size: #6x100°

Outer Diameter: 0.477 in

Thickness: 0.070 in

Drawing of H3-1233(X)08 by Harper Engineering Co.

H3-1233(X)08

Size: #8x100°

Outer Diameter: 0.518 in

Thickness: 0.060 in

Drawing of H3-1233(X)08B by Harper Engineering Co.

H3-1233(X)08B

Size: #8x100°

Outer Diameter: 0.566 in

Thickness: 0.080 in

Drawing of H3-1233U(X)3 by Harper Engineering Co.

H3-1233U(X)3

Size: #10x100°

Outer Diameter: 0.500 in

Thickness: 0.060 in

Drawing of H3-1233(X)3 by Harper Engineering Co.

H3-1233(X)3

Size: #10x100°

Outer Diameter: 0.600 in

Thickness: 0.060 in

Drawing of H3-1233(X)3B by Harper Engineering Co.

H3-1233(X)3B

Size: #10x100°

Outer Diameter: 0.656 in

Thickness: 0.090 in

Drawing of H3-1233(XX)482 by Harper Engineering Co.

H3-1233(XX)482

Size: 1/4x82°

Outer Diameter: 0.438 in

Thickness: 0.063 in

Drawing of H3-1233(XX)400 by Harper Engineering Co.

H3-1233(XX)400

Size: 1/4x100°

Outer Diameter: 0.875 in

Thickness: 0.125 in

Drawing of H3-1233(XX)582 by Harper Engineering Co.

H3-1233(XX)582

Size: 5/16x82°

Outer Diameter: 1.25 in

Thickness: 0.188 in

Drawing of H3-1233(XX)500 by Harper Engineering Co.

H3-1233(XX)500

Size: 5/16x100°

Outer Diameter: 1.125 in

Thickness: 0.156 in

Drawing of H3-1233(XX)0482 by Harper Engineering Co.

H3-1233(XX)0482

Size: #4x82°

Outer Diameter: 1.00 in

Thickness: 0.156 in

Drawing of H3-1233(XX)0400 by Harper Engineering Co.

H3-1233(XX)0400

Size: #4x100°

Outer Diameter: 0.438 in

Thickness: 0.0625 in

Drawing of H3-1233(XX)0682 by Harper Engineering Co.

H3-1233(XX)0682

Size: #6x82°

Outer Diameter: 0.563 in

Thickness: 0.094 in

Drawing of H3-1233(XX)0600 by Harper Engineering Co.

H3-1233(XX)0600

Size: #6x100°

Outer Diameter: 0.5 in

Thickness: 0.063 in

Drawing of H3-1233(XX)0882 by Harper Engineering Co.

H3-1233(XX)0882

Size: #8x82°

Outer Diameter: 0.75 in

Thickness: 0.125 in

Drawing of H3-1233(XX)0800 by Harper Engineering Co.

H3-1233(XX)0800

Size: #8x100°

Outer Diameter: 0.625 in

Thickness: 0.094 in

Drawing of H3-1233(XX)1082 by Harper Engineering Co.

H3-1233(XX)1082

Size: #10x82°

Outer Diameter: 0.813 in

Thickness: 0.125 in

Drawing of H3-1233(XX)1000 by Harper Engineering Co.

H3-1233(XX)1000

Size: #10x100°

Outer Diameter: 0.688 in

Thickness: 0.094 in

Drawing of H3-1233(XX)M390 by Harper Engineering Co.

H3-1233(XX)M390

Size: M3x90°

Outer Diameter: 12.0 mm

Thickness: 1.8 mm

Drawing of H3-1233(XX)M490 by Harper Engineering Co.

H3-1233(XX)M490

Size: M4x90°

Outer Diameter: 16.0 mm

Thickness: 2.5 mm

Drawing of H3-1233(XX)M590 by Harper Engineering Co.

H3-1233(XX)M590

Size: M5x90°

Outer Diameter: 19.0 mm

Thickness: 2.8 mm

Drawing of H3-1233(XX)M690 by Harper Engineering Co.

H3-1233(XX)M690

Size: M6x90°

Outer Diameter: 23.0 mm

Thickness: 3.4 mm

Drawing of H3-1233(XX)M890 by Harper Engineering Co.

H3-1233(XX)M890

Size: M8x90°

Outer Diameter: 32.0 mm

Thickness: 4.5 mm
