Panel Fasteners

Panel Insert Image 2.jpg

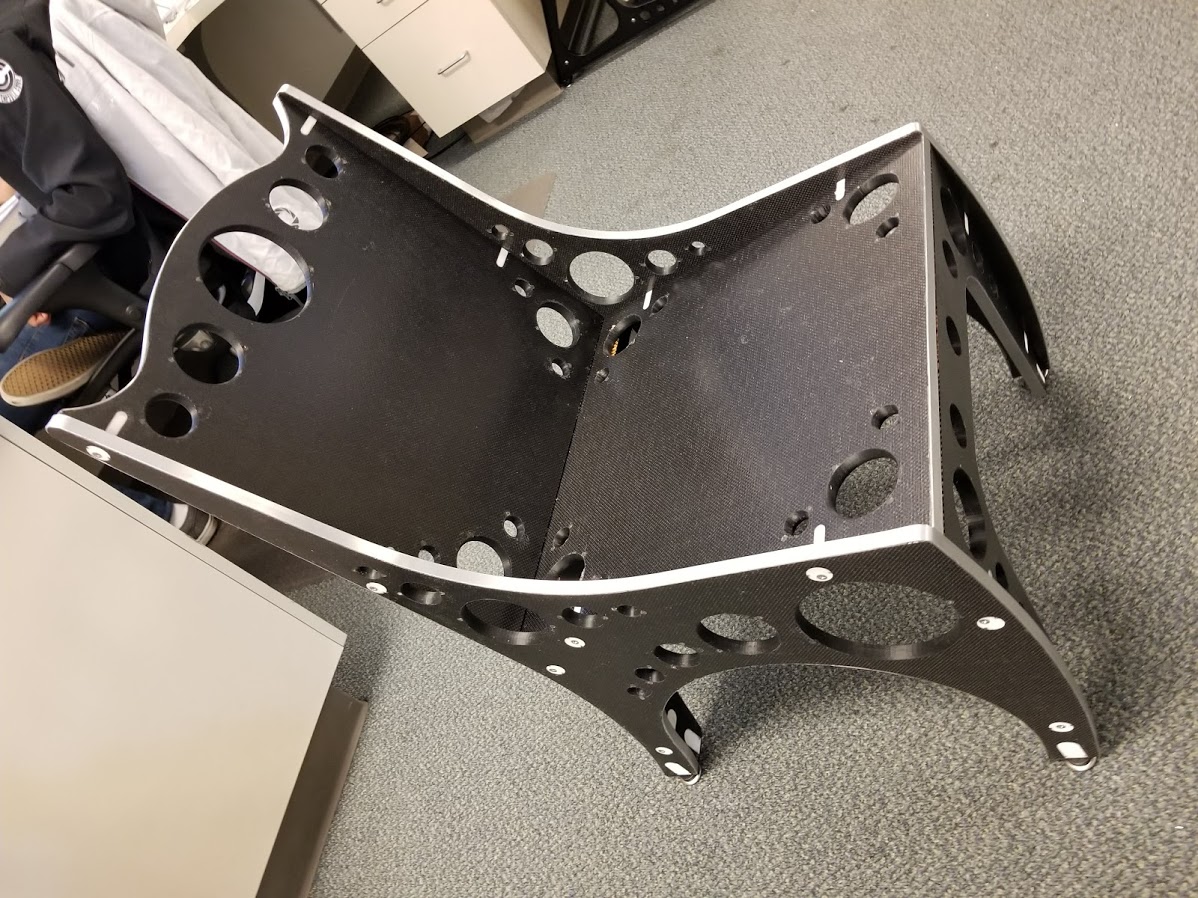

The Harper panel fastening system was developed in response to some of the challenges of existing sandwich panel assembly methods.

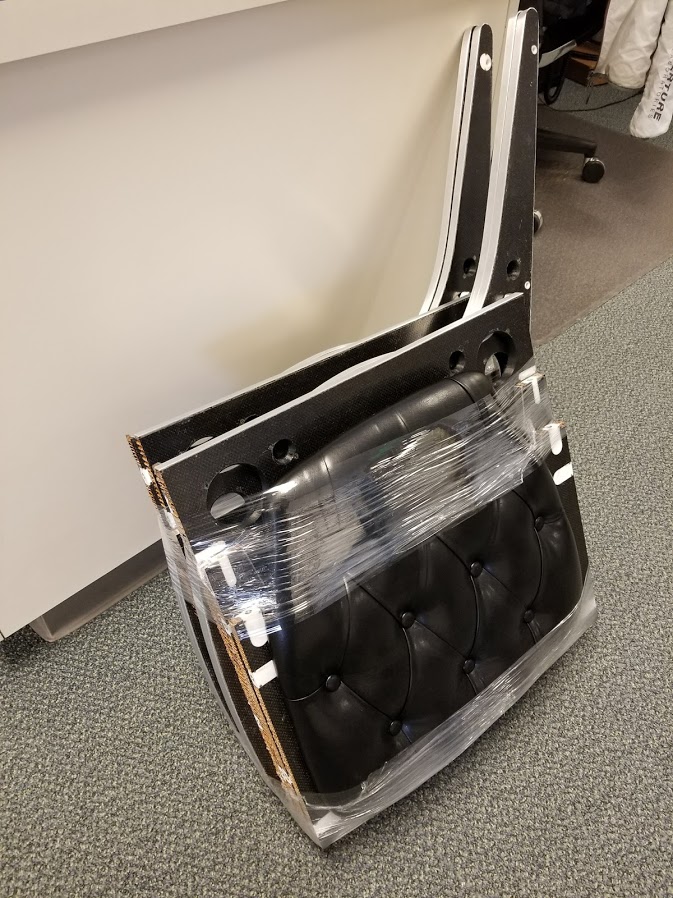

This family of unique inserts brings the efficiency of the furniture-in-a-box industry to aerospace, where sandwich panel assemblies require no fixturing or adhesives at the assembly level. This supports pre-finishing of panel sub-assemblies, and flat-pack shipping capability.

The Harper panel fastening system decreases rework costs associated with separating bonded panel assemblies.

Inserts can be custom made to fit any panel thickness, curvature, and mating angle for limitless panel joint configurations.

Benefits

Reduced panel assembly labor

Fixture-less precision assembly

Decreased cycle times

Increased production rates

Lightweight & strong

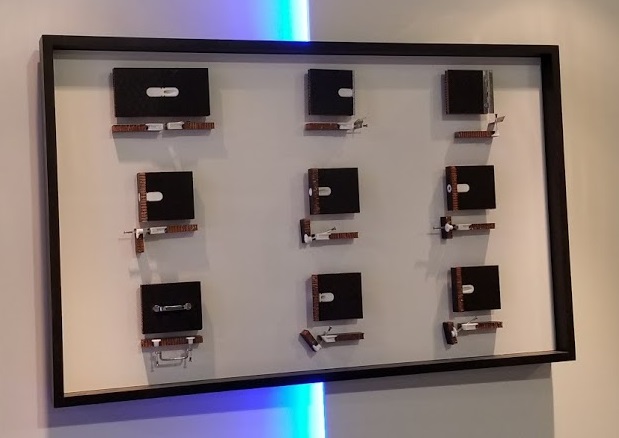

H3-11-08-500

HIGH LOAD BLIND THREADED INSERT

H3-14-08-1000

PANEL EDGE BLIND THREADED INSERT

H3-14-08-500

PANEL EDGE BLIND THREADED INSERT

H3-14-08-750

PANEL EDGE BLIND THREADED INSERT

H3-16-08-1000

COPLANAR JOINT THREADED INSERT

H3-16-08-500

COPLANAR JOINT THREADED INSERT

H3-16-08-750

COPLANAR JOINT THREADED INSERT

H3-26-10-375

ECCENTRIC D-SHAPED THRU INSERT
